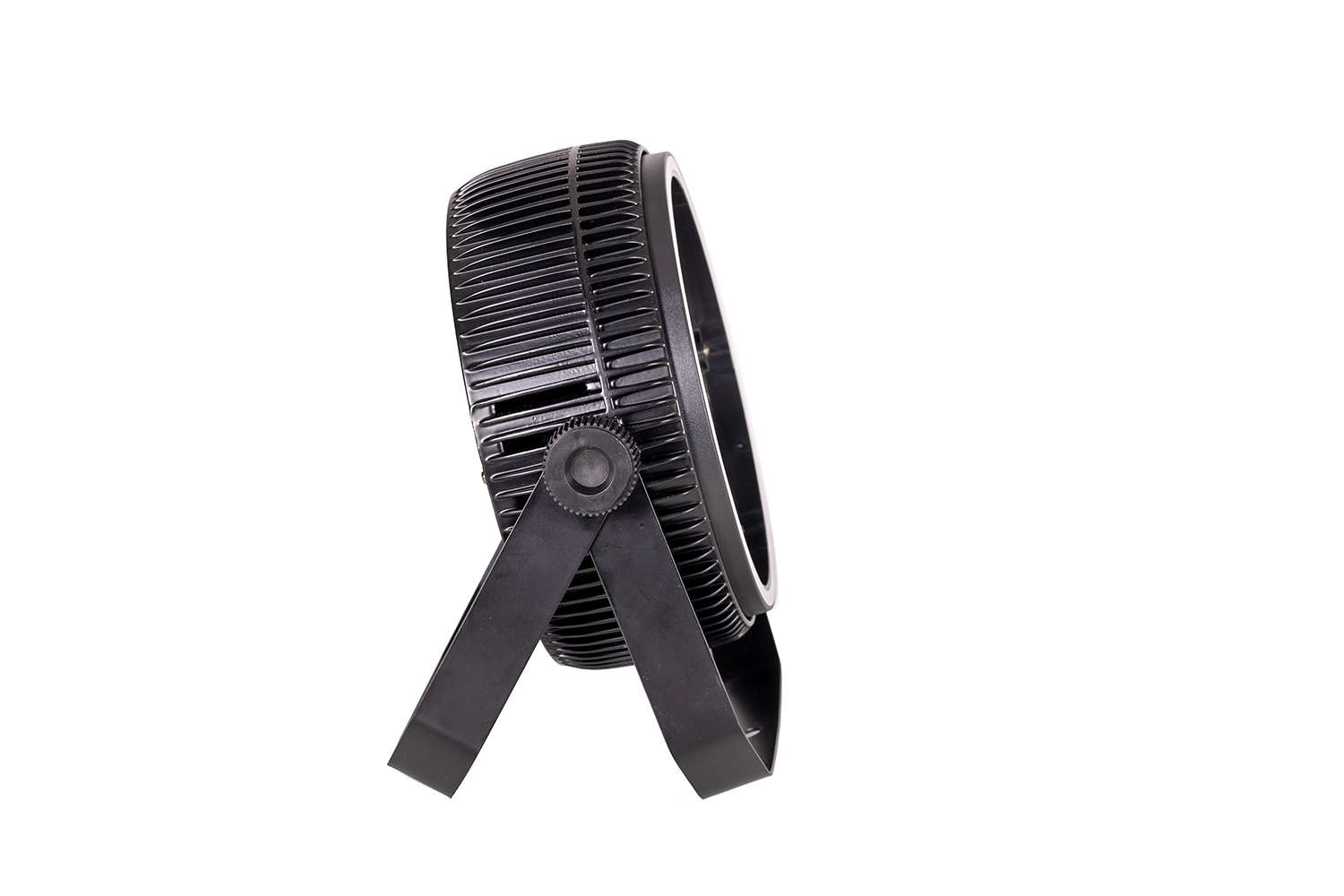

ColorKey Halo Par Hex 18P
ColorKey SKU CKU-5073
ColorKey
A full-spectrum RGBWA+UV wash par with six-zone pixel mapping, a 34-zone RGB halo, durable metal housing, advanced DMX/RDM control, and adjustable 2500K to 8000K color temperature.
MAP
$149.99
Overview
Product details
A full-spectrum RGBWA+UV wash par with six-zone pixel mapping, a 34-zone RGB halo, durable metal housing, advanced DMX/RDM control, and adjustable 2500K to 8000K color temperature.
Features
- 18 x 10W RGBWA+UV LEDs deliver full-spectrum color mixing with vibrant UV output.
- Six wash zones plus a 34-zone RGB halo support chases, waves, and segmented pixel effects.
- Durable metal housing is built for touring, rental, and install use.
- UHX RGB halo synchronizes with other UHX fixtures using built-in chases, patterns, and color mixing.
- DMX channel modes: 9, 20, and 138 for simple operation or pixel-level control.
- Color temperature control from 2500K to 8000K.
Specifications
| Light Source | 18 x 10W RGBAW+UV LEDs, 6 zones |
|---|---|
| Beam Angle | 25 degrees |
| Field Angle | 45 degrees |
| Illuminance | 3590 lux @ 2m |
| Halo | 34-zone RGB LED halo |
| Control Protocols | DMX512, RDM, Auto, Sound Active |
| DMX Channel Modes | 9 / 20 / 138 |
| Power I/O | PowerCON in/out |
| DMX I/O | 3-pin in/out |
| Voltage | AC90-240V, 50/60Hz |
| Max Power Consumption | 120W |
| Dimensions | 10.24 x 8.27 x 3.54 in (26 x 21 x 9 cm) |
| Weight | 5 lb (2.3 kg) |
Videos
Product video
Additional info
Specs and reference
UPC810189840492
SKUCKU-5073
Weight5.00 lb
Length10.24 in
Width8.27 in
Height3.54 in
